◇ Customer & Naming

Item

Remark

◇

Customer name

TBD

◇

Customer project name

TBD

◇

Internal project name

Wi820E

◇

Marteting Target

High End

◇

BOM Target

◇

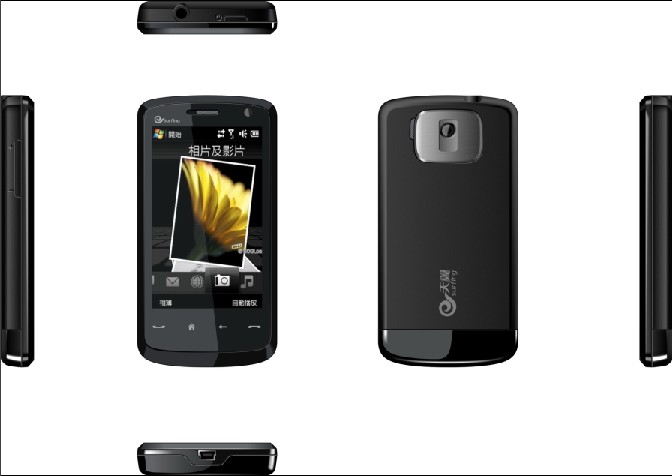

ID/UI description

Windows mobile style

◇ Basic Information

Item

Remark

◇

Characteristic

*

Type

PDA Type

*

Dimensions

 (mm)

*

Weight with battery

◇ Hardware information

Item

Remark

◇

Application Processor

Intel PXA270;  416MHz

◇

CDMA2000/WIFI/GPS/Bluetooth

◇

CDMA2000 Chipset

Qualcomm 6085

*

Band

800MHz

*

WLAN

Chipest: Marvell 8686                                                            IEEE 802.11g/b; 2.4GHz                                                                           RF channels: US: 11, ETSI: 13, Japan: 14

*

VoWLAN codec

G.711,729

*

Dual Mode Support

Simultaneous transmission and receiving by both CDMAand WLAN radios

*

GPS

 1575MHz and 800MHz

GSM

900MHz, 1800MHz, 1900MHz

?

*

Bluetooth

CSR BC04  V2.0

◇

Memory and storage

*

Flash(mDOC)

128MB

*

RAM

128MB

*

Extended Storage

Support Micro-SD

◇

Display

*

Main LCD

3.2'  Touch Screen

240*400 dots resolution

Support 65K colors

*

Sub LCD

N/A

◇

Camera

*

Pixel

2.0-mega-piexel CMOS and 1.3-mega-piexel

double camera,  can't operate at the same time

*

Picture Size

Max 1280x1024

*

Zoom

Digital zoom

*

Video

Support still image and video capture

◇

Keyboard/ Button / Switch

*

Touch Screen

Y

capacitive touch panel or resistive touch panel

*

Power key

Y

*

OK key

Y

*

Start key

Y

*

Short cut Key

Y, 2

*

trackball or Ultra thin optical navigation module

select one

*

the connecter for whole keyboard

reserved for whole keyboard ( I2C )

*

Side buttons

Volume up, Volume down and Camera

*

gravity sensor

?

*

◇

 Battery

*

Capacity

Removable rechargeable Li-Ion battery, 1,680mAh

?

◇

Operation time

*

Standby

>100 Hour

Battery life may vary depending on RF conditions and actual usage

*

Talk time

> 3Hours

*

Charging time

4-5Hours

◇

Interface

*

Bluetooth (Microsoft standard profile)

Y with A2DP

CSR BC4

*

Mini-USB connector

Y

*

SIM card slot

Y

*

Audio Jack

Y

*

◇

Accessory

*

Battery

1

*

AC Charger

1

AC Charger (110~240v) with one power plug adaptor. Different adaptors will be included for different international destinations, e.g. EU, UK, etc

*

Earphone

1

*

CD

1

*

USB Cable

1

◇

Certification

FTA；CTA；CE；FCC; RoHS (Lead Free)

TBD by Customer

◇ Software information

Item

Remark

◇

Platform

*

Operating System

Windows Mobile 6.1 Professional

◇

Language options available

*

Default language

Simplified Chinese

◇

Input Method

*

handwriting

YES

*

Default Keypad Input

Microsoft IME

◇

Menu requirement

Based on Microsoft

 VoIP Related

◇

CDMA/WLAN Convergence

*

Simultaneously Active CDMA/GPRS and WiFi Radio Interfaces

*

Incoming Calls from Both CDMA and VoWLAN

*

Automatic and Manual Switch for Outgoing Voice Calls between CDMA and VoWLAN

*

Automatic and Manual Switch for Data Applications using CDMA 1x or WLAN

*

Unified phone book for cellular and VoIP calls

*

Unified call log and timer for cellular and VoIP calls

◇

WLAN Specification

*

Protocol

IEEE 802.11b/g

*

RF Channels

US: 11, ETSI: 13, Japan: 14

*

Security

WEP(Shared; Open; 64bits, 128 bits WEP)

802.1x(EAP-Peap;EAP-TLS)

WPA/WPA2/WPS/WISPr

*

TCP/IP

Support Static and DHCP Clent

*

VPN (Ipsec)

YES

*

Roaming

Fast Roming from AP to AP

*

Quick and Easy Connect feature

Support

*

Power Saving modes

Support

*

QoS

WME

*

Wlan connectivity

Always-on

◇

VoIP Specification

*

Protocol

SIP: IETF RFC 3261

*

Codec

G.711,G.729a/b

*

Acoustic Echo Cancellation

Y

*

Dynamic Jitter Buffer

Y

*

Voice Activity Detection

Y

*

Stun-based NAT traversal

Y

*

DTFM

support (RFC 2833)

*

SiP register management

Always-on

◇

Call Feature

*

Call Hold

Y

*

Call Forward

Y

*

Call Transfer

Y(VoWiFi)

*

Call Waiting

Y

*

Call Mute

Y

*

Call Barry

Y

*

3-Way Conferencing

Y

*

Speed Dialing

Y

*

Display source of call: WLAN or CDMA

Y

*

Call history

Y

◇

Fixed Mobile Convergence (FMC)

*

, Single Number Support (Cellular and VoIP)

Y

*

SIM-based SIP authentication

Y

*

SMS over SIP

Y

*

Seamless, automatic or manual handover from VoIP to cellular in active
session

Y

*

Seamless, automatic or manual handover from cellular to VoIP in active
session

Y

◇

Phone book

*

Storage No.

>1000

*

◇ SMS&MMS

* Number

>500SMS+30EMS+100MMS

* Long message(SMS concatenation)

Support

text

*

SMS (Class)

class 0,1.2

* STK

Support

* MMS size

<100K

* MMS format

SMIL

* Group sending

5 items

* Preset message

10 items

* Pick-up phone No.in message

Support

* Storage location selection

SIM card or phone

*

MMS supported format

JPEG,GIF89a,GIF87,WBMP/3GP

*

MMS audio supported format

MIDI,PCM,

*

MMS Total size

Send Max100KB,  Receive Max100KB

*

◇

Office Mobile

*

Excel Mobile

Y

*

Word Mobile

Y

*

PowerPoint Mobile

Y

*

Outlook

Y

◇ WAP

* Version

2.0

◇ WWW Browser

*

Browser

Microsoft Pocket IE

◇ Multimedia

* Media player

Yes(Microsoft)

*Support audio format

MP3, MIDI, WAV, WMA

*Video Format

3GP, MPEG4,WMV

* Pictures

*Support format

GIF, JPEG, BMP

*Voice recorder

Yes

◇ Ring tone

* Support format

MP3,WAV,MIDI,WMA

* Stereo (phone)

64 chord

◇

Personal assistant

*

Calculator

Y

*

Calendar

Y

*

Alarm

Y

*

Task

Y

*

Note

Y

*

PC Tools

ActiveSync

◇ VA service

◇ Games

2

◇ JAVA

2.0

◇

◇ Phone Management (OTA support)

◇ Firmware update

Micro-SD;OTA

◇ SIP Setting

Micro-SD; OTA;ActiveSync
